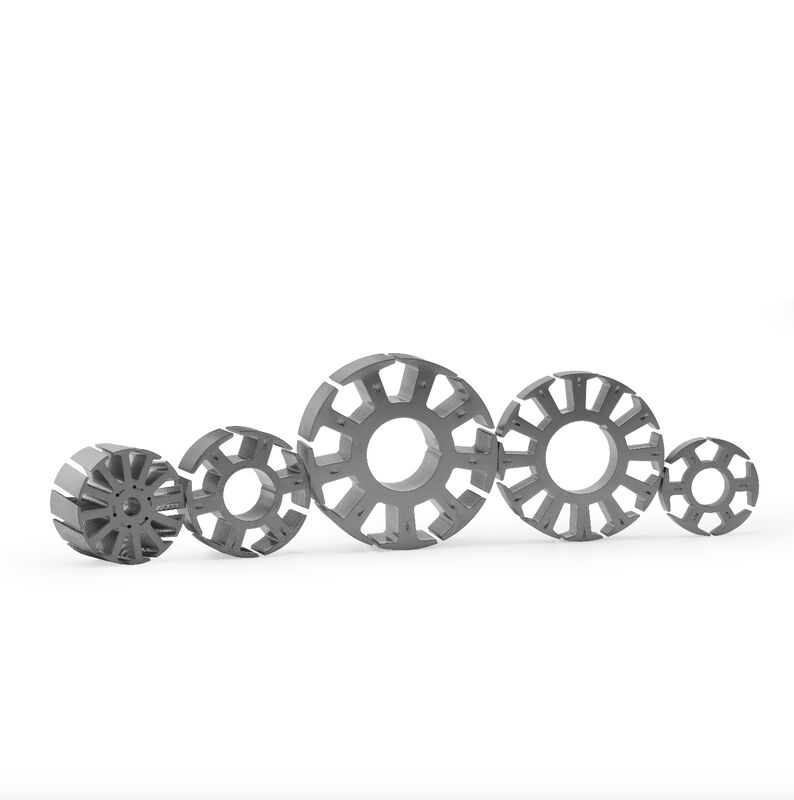

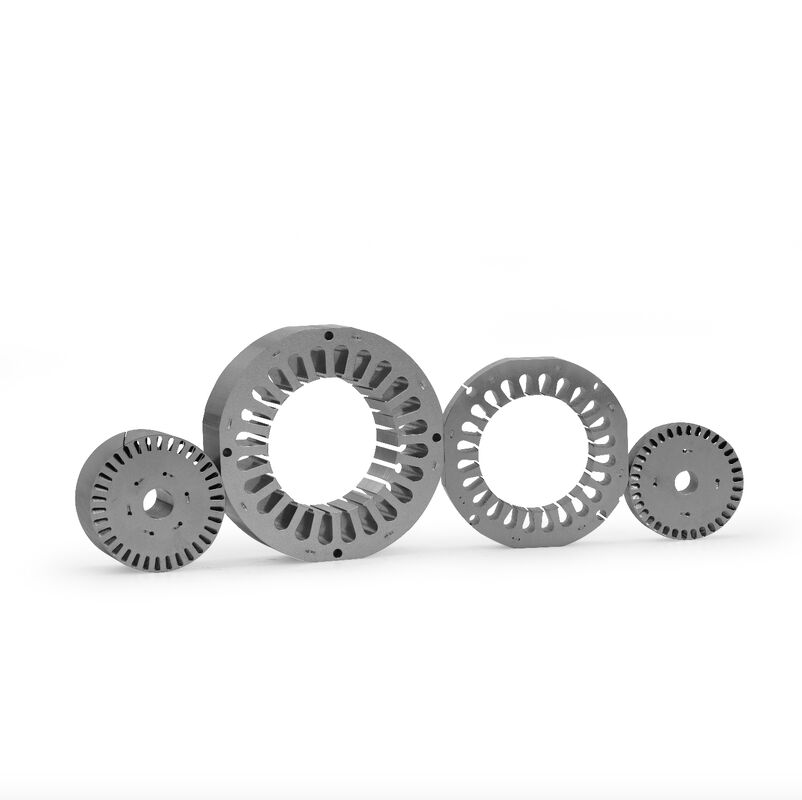

50mm - 200mm OD Fan Motor Iron Core Air Conditioning Blower Motor Core Fan Motor Parts
-
Highlight
200mm OD Motor Iron Core
,50mm OD Motor Iron Core
,200mm OD Blower Motor Core
-
NameMotor Core
-
Core Thickness0.35mm - 0.5mm
-
FeatureHigh-performance
-
Operating Temperature-20°C To 120°C
-
MaterialSilicon Steel Sheet
-
Protection ClassIP54 - IP67
-
Place of OriginChina
-
Document
-
Minimum Order Quantity1 piece
-
PriceUSD+0.1-10+PCS
-
Packaging DetailsCartons packaging , boxes packaging
-
Delivery Time3-4 weeks
-
Payment TermsＴ/Ｔ
-
Supply Ability10000 piece / day
50mm - 200mm OD Fan Motor Iron Core Air Conditioning Blower Motor Core Fan Motor Parts
50mm - 200mm OD Fan Motor Iron Core Air Conditioning Blower Motor Core Fan Motor Parts
Introduction to Fan Motor Iron Cores
Fan motor iron cores are essential components in fan and air conditioning blower motors, designed to convert electrical energy into mechanical energy. Utilizing electromagnetic induction principles, these cores drive fan blade rotation to facilitate air flow and distribution. Widely used in household air conditioners, industrial fans, and HVAC systems, they serve as critical components ensuring efficient equipment operation.
Working Principle
The operation of fan motor iron cores is based on electromagnetic induction. When current flows through the motor coils, it generates a magnetic field within the iron core. This magnetic field interacts with the rotor to produce torque, enabling motor rotation. The core's material composition and design directly influence motor efficiency, noise levels, and operational lifespan. Typically manufactured from silicon steel sheets with high magnetic permeability, these cores minimize eddy current and hysteresis losses, enhancing overall motor performance.
Applications
- Household Air Conditioners: Drive air supply systems to ensure effective indoor air circulation
- Industrial Fans: Provide ventilation solutions for large spaces including factories and warehouses
- HVAC Systems: Regulate air circulation and temperature control in commercial buildings and public facilities
- Automotive Air Conditioners: Deliver heating and cooling air distribution for vehicle climate control systems
Specification Parameters
| Parameter Name | Specification Description |
|---|---|
| Material | Silicon steel sheet |
| Thickness | 0.35mm - 0.5mm |
| Outer Diameter | 50mm - 200mm |
| Inner Diameter | 20mm - 100mm |
| Laminating Method | Single-sheet lamination or multi-sheet lamination |
| Operating Temperature | -20℃ - 120℃ |
| Applicable Motor Type | AC motor, DC motor |
| Efficiency | 85% - 95% |
Frequently Asked Questions
Why is silicon steel sheet chosen as the material for fan motor iron cores?
Silicon steel sheets offer high magnetic permeability and low iron loss characteristics, effectively reducing eddy current and hysteresis losses to improve motor efficiency.
How to select a suitable fan motor iron core?
Selection should be based on motor power, speed, and operating environment parameters to determine appropriate core size and material specifications.
What is the service life of a fan motor iron core?
Under normal operating conditions, fan motor iron cores can achieve service lives exceeding 10 years, depending on environmental factors and maintenance practices.
What should be paid attention to in the maintenance of fan motor iron cores?
Regular inspections should check for deformation, rust, or damage to ensure stable motor operation and prevent overheating or excessive noise issues.
Can fan motor iron cores be customized?
Yes, custom cores are available in various sizes, shapes, and materials to meet specific application requirements and customer specifications.
Summary
As core components in fan and air conditioning systems, fan motor iron cores significantly impact equipment operating efficiency and longevity. Through proper selection and maintenance practices, long-term stable operation can be ensured across diverse application scenarios. Whether in household air conditioners or industrial ventilation systems, these components play an indispensable role in system performance.
