Electronically Commutated Fan Motor Core
,Electronically Commutated fan Motor Components
,1000W Fan Motor Core
-
NameMotor Core
-
Core Thickness0.35mm - 0.5mm
-
FeatureHigh-performance
-
Operating Temperature-20°C To 120°C
-
MaterialSilicon Steel Sheet
-
Protection ClassIP54 - IP67
-
Place of OriginChina
-
Document
-
Minimum Order Quantity1 piece
-
PriceUSD+0.1-10+PCS
-
Packaging DetailsCartons packaging , boxes packaging
-
Delivery Time3-4 weeks
-
Payment TermsＴ/Ｔ
-
Supply Ability10000 piece / day

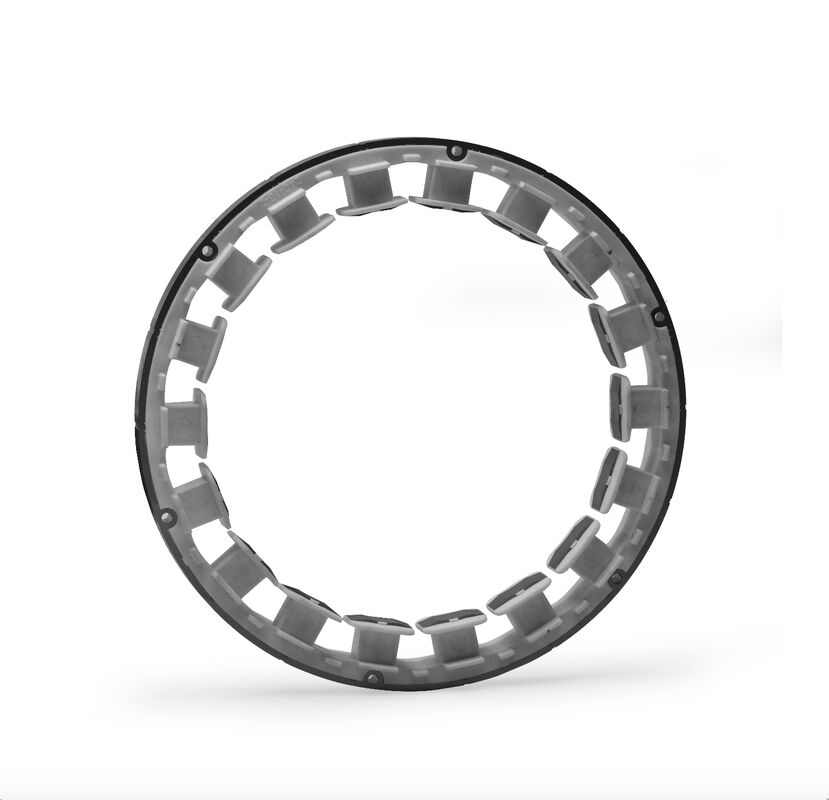

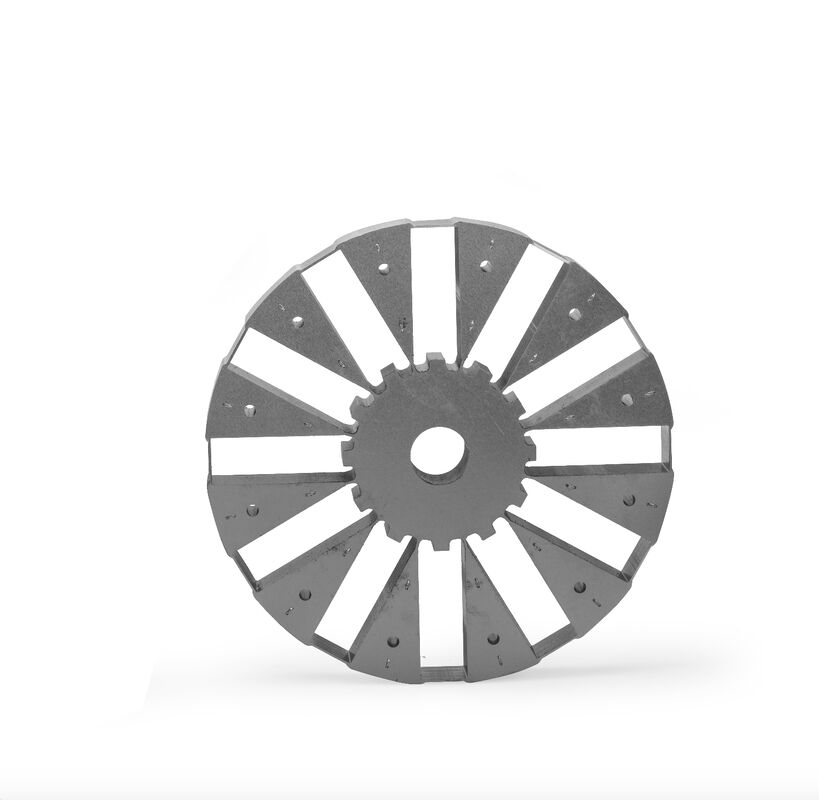

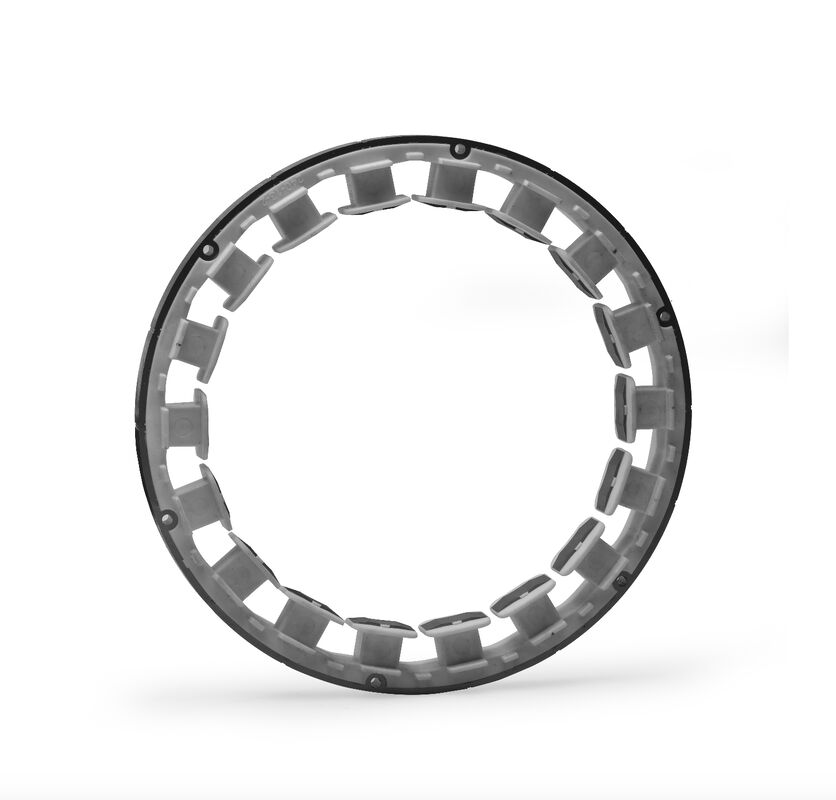

Electronically Commutated Fan Motor Core Fan Motor Components 10W - 1000W
Electronically Commutated Fan Motor Core Components (10W - 1000W)
Introduction to EC Fan Motor Iron Core
The EC fan motor iron core serves as the fundamental component in Electronically Commutated fan motors, responsible for converting electrical energy into mechanical energy to drive fan operation. These motors are extensively utilized in air conditioning, ventilation, and heating applications due to their high efficiency, energy-saving capabilities, and low noise characteristics. The design and material selection of the iron core directly influence motor performance and overall efficiency.
Working Principle
EC fan motor iron cores operate on electromagnetic induction principles. When current flows through motor windings, it generates a magnetic field within the iron core. This magnetic field interacts with permanent magnets on the rotor to produce torque, driving fan blade rotation. EC motors employ electronic commutation technology, where built-in electronic controllers precisely regulate current direction and magnitude to ensure efficient and stable operation.
Applications
EC fan motor iron cores find widespread application across multiple industries:
- Air conditioning systems: Central air conditioners, split air conditioners, and other HVAC equipment requiring efficient, energy-saving air circulation
- Ventilation systems: Industrial facilities, commercial centers, office buildings, and other spaces requiring reliable air exchange
- Heating systems: Underfloor heating, radiators, and other temperature control equipment for comfortable indoor environments
- Industrial equipment: Cooling towers, air compressors, and other machinery requiring effective heat dissipation and ventilation
Specification Parameters
| Parameter Name | Parameter Value |
|---|---|
| Core Material | Silicon steel sheet |
| Core Thickness | 0.35mm - 0.5mm |
| Core Shape | Ring, E-type, U-type, etc. |
| Working Voltage | 12V - 240V |
| Power Range | 10W - 1000W |
| Efficiency Class | IE3 - IE5 |
| Operating Temperature | -20°C - 120°C |
| Protection Class | IP54 - IP67 |
Frequently Asked Questions
What is the main material of the EC fan motor iron core?
The EC fan motor iron core primarily utilizes silicon steel sheets, which offer high magnetic permeability and low iron loss characteristics, effectively enhancing motor efficiency.
How does the thickness of the EC fan motor iron core affect motor performance?
Iron core thickness influences magnetic circuit resistance and core loss. Thinner cores reduce eddy current loss and improve motor efficiency, though they may increase manufacturing costs.
What are the shapes of EC fan motor iron cores?
Common core configurations include ring, E-type, and U-type designs, each suitable for motors with specific operational requirements and design parameters.
What does the protection class of the EC fan motor iron core mean?
Protection class indicates the motor's resistance to external solids and liquids. IP54 provides dustproof and splashproof protection, while IP67 offers dustproof and short-term water immersion protection.
How are the efficiency classes of EC fan motor iron cores divided?
Efficiency classifications follow energy consumption standards: IE3 represents high efficiency, IE4 indicates ultra-high efficiency, and IE5 denotes super ultra-high efficiency levels.
