Industrial Automation Motor Iron Core 50–200 Layers High Efficiency Drive
-
Highlight
200 Layers Motor Iron Core
,Industrial Automation Motor Iron Core
,5 Layers electric motor core
-
ProductnameMotor Iron Core
-
SurfacetreatmentAnti-corrosion Coating
-
Core Thickness0.35-0.5 Mm
-
MaterialSilicon Steel
-
Magnetic Permeability15,000-20,000 H/m
-
CoatingInsulating Varnish
-
Place of OriginChina
-
Document
-
Minimum Order Quantity1 piece
-
PriceUSD+0.1-10+PCS
-
Packaging DetailsCartons packaging , boxes packaging
-
Delivery Time3-4 weeks
-
Payment TermsＴ/Ｔ
-
Supply Ability10000 piece / day

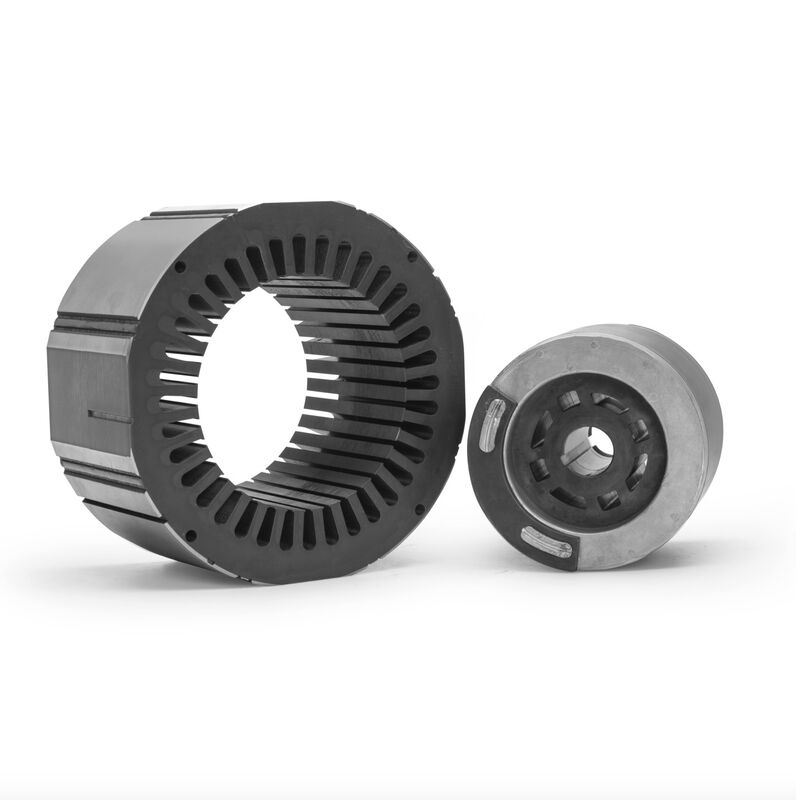

Industrial Automation Motor Iron Core 50–200 Layers High Efficiency Drive
Industrial Automation Motor Iron Core 50–200 Layers High Efficiency Drive
The Industrial Automation High-Permeability Silicon Steel Motor Core is engineered to deliver superior magnetic performance and low iron loss, ensuring high-efficiency drive for modern industrial equipment. Constructed with premium silicon steel and laminated into 50-200 layers, this core minimizes eddy current loss and improves overall system stability.
Applications
- Precision robotic arms, conveyor drives, and automated valves
- Systems requiring accurate torque and consistent output
- Applications where efficiency and heat resistance are critical
Key Advantages
- High magnetic permeability for excellent magnetic flux and energy efficiency
- 50-200-layer lamination significantly reduces eddy current and hysteresis loss
- Wide compatibility with DC and stepper motors
- Long service life even in demanding industrial environments
Specifications
| Parameter | Value |
|---|---|
| Material | High-permeability silicon steel |
| Core Thickness | 0.35-0.5 mm |
| Lamination Layers | 50-200 |
| Magnetic Permeability | 15,000-20,000 H/m |
| Operating Temperature | -20 °C to 120 °C |
| Applicable Motor Types | DC motor, stepper motor |
Production Process
High-grade silicon steel selection
Precision stamping and lamination
Core assembly with strict alignment
Heat treatment and insulation coating
Final electrical and magnetic testing for industrial automation standards
After-Sales Service
One-year quality warranty with optional extended coverage, remote technical support, and rapid spare-parts supply to keep production lines running smoothly.
Frequently Asked Questions
Can the core handle continuous 24/7 operation?
Yes, the lamination design ensures low heat rise for round-the-clock use.
Is customization available for different motor sizes?
Yes, lamination layers and thickness can be tailored to specific requirements.
